SRI09 Wrapped bronze
Oilless bearing or low-oil-content lubrication is applied to the conditions where is impossible or difficult to be lubricated. Maintenance free and reliable operation avoids risk of insufficient oils lubricating.
SRI09 Wrapped Bronze
Products List
Structure Characteristics and Applications
SRI09 wrapped bronze bearing is made of tin-bronze CuSn8 with its surface punched with diamond oil sockets which are preserved for oil saving. It has good anti-fatigue, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.
Product Benefits
SRI02 IS TRIPLE-LAYER SELF LUBRICATING MATERIAL THAT CAN FILI MODIFIED POM PLASTIC AS SU RFACE LAYER; IT IS BENIGNANT BOUNDARY ...
CASTING BRONZE BEARING PLUGGED WITH GRAPHITE, ROHS STANDARD, NO WASTE OIL RECYCLING IS ENVIRONMENTALLY FRIENDLY.
1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3. Various holes and dents can be made on the frication surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainability, especially suitable for coarse abrasion surfaces.
Standard products available: straight bushings, thrust plates and pressure bearings.
Non-standard products available: straight bushings, thrust plates, planks, bearing bushings, slide plates and steel bushing assembly.

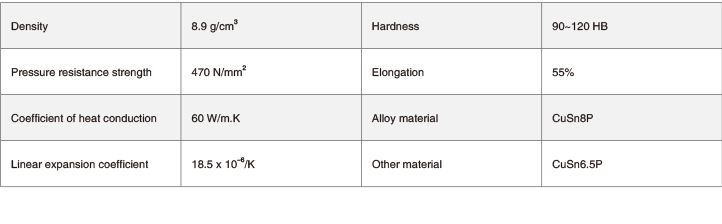

Material Structure
Technology

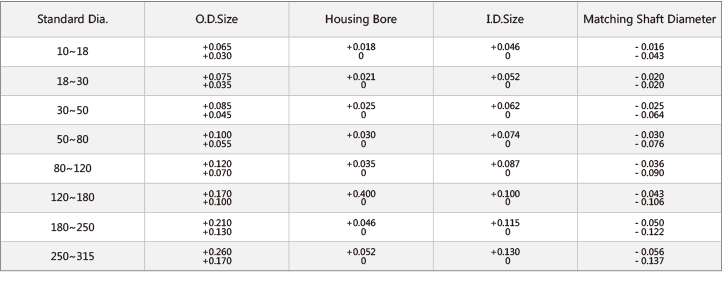

Tolerance

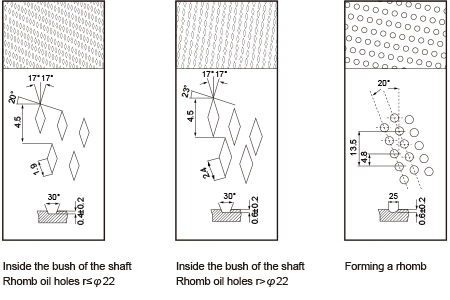

High-density bronze is rolled into shape or oil bags and oil holes are specially integrated into the inner surface to reduce the wearing and prolong the service hours. Besides, it has excellent anti-corrosion functions.
